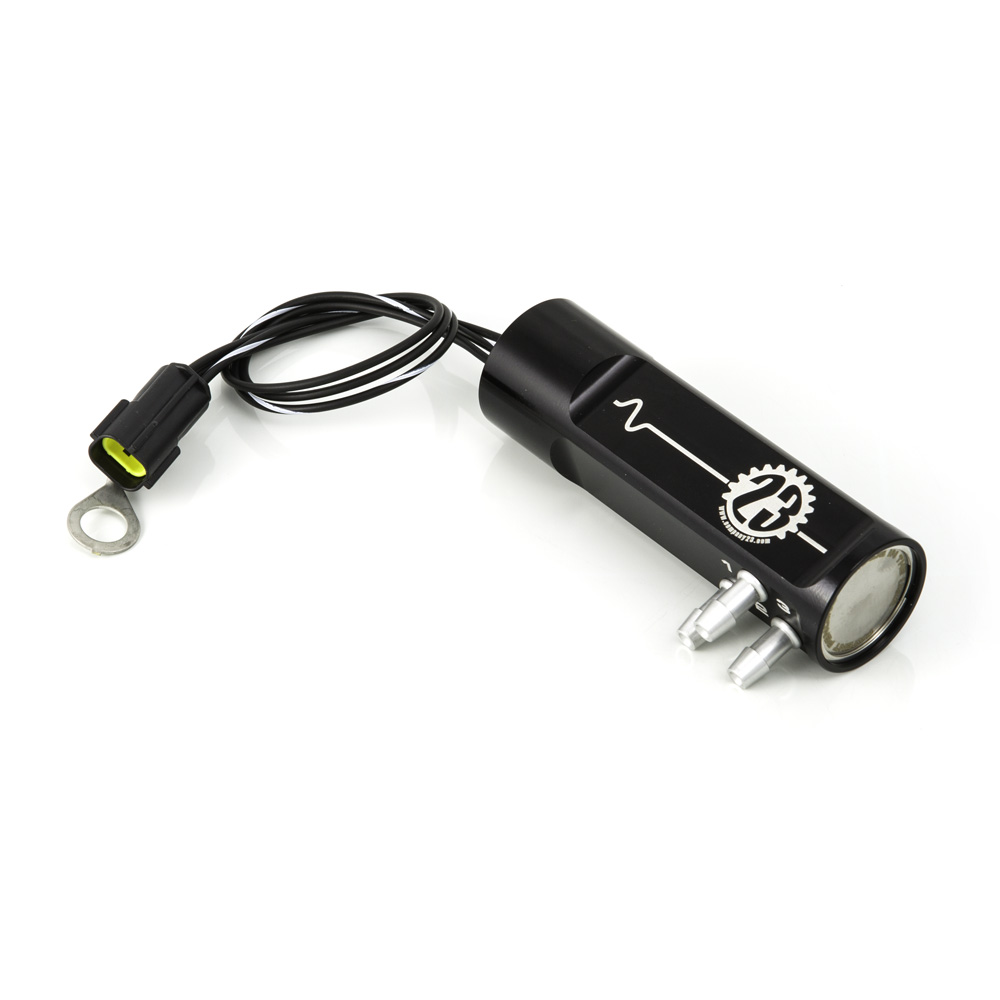

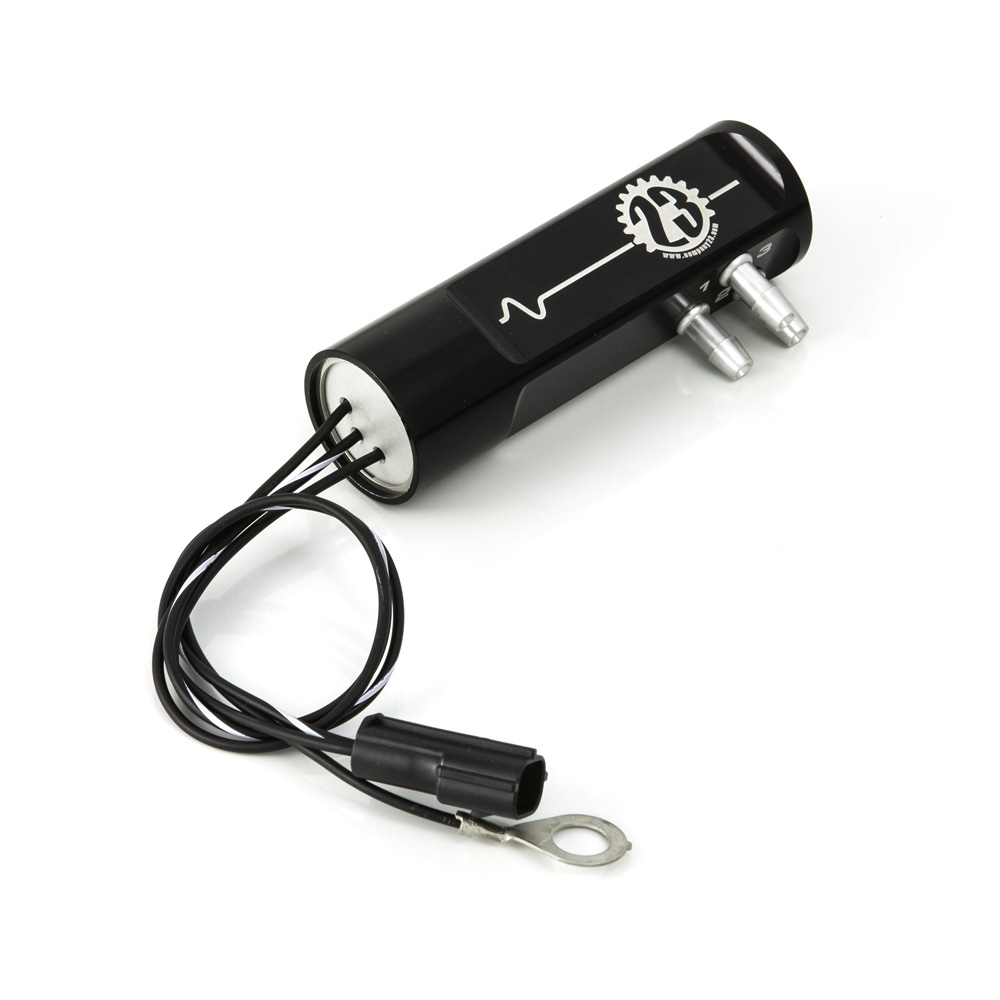

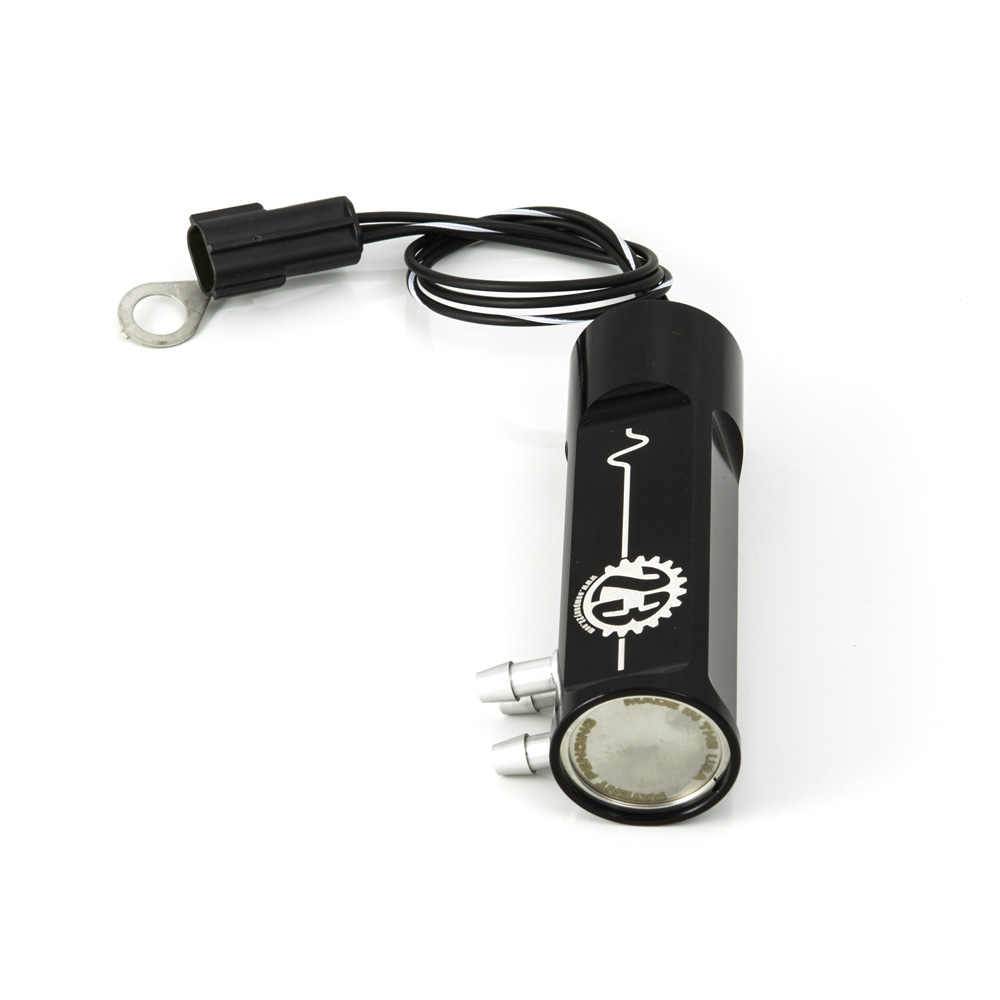

Anti-Surge Boost Control Solenoid v3

Subaru Anti-Surge Boost Controller v3 Manual:  Download

Patent #: US 10,107,185 B2

Features:

• Game changing boost control for turbocharged Subarus utilizing patent pending electronic anti-surge technology
• Eliminates common and annoying internal and external wastegate flutter!
• Allows tuners to more precisely create your boost curve (increasing spool and horsepower) by not detuning your car to eliminate boost oscillation
• The top Subaru tuners have proven the benefits of the Company23 anti-surge boost control solenoid on stage 2 cars up to 650whp track beasts!
• As simple to tune as a basic 3-port boost control solenoid.  Very tuner friendly!

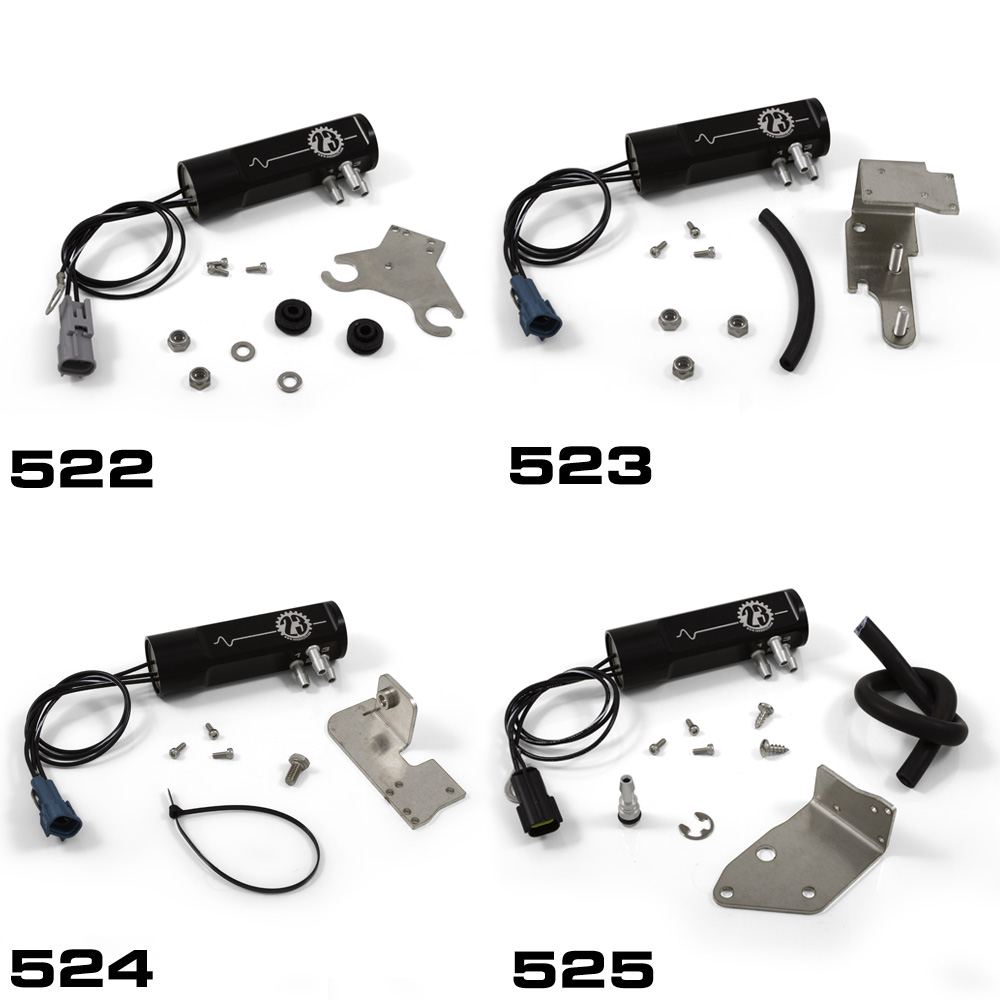

• Easy installation with included OEM quality mounting brackets and electrical connectors"Plug and tune" for all Subaru models!

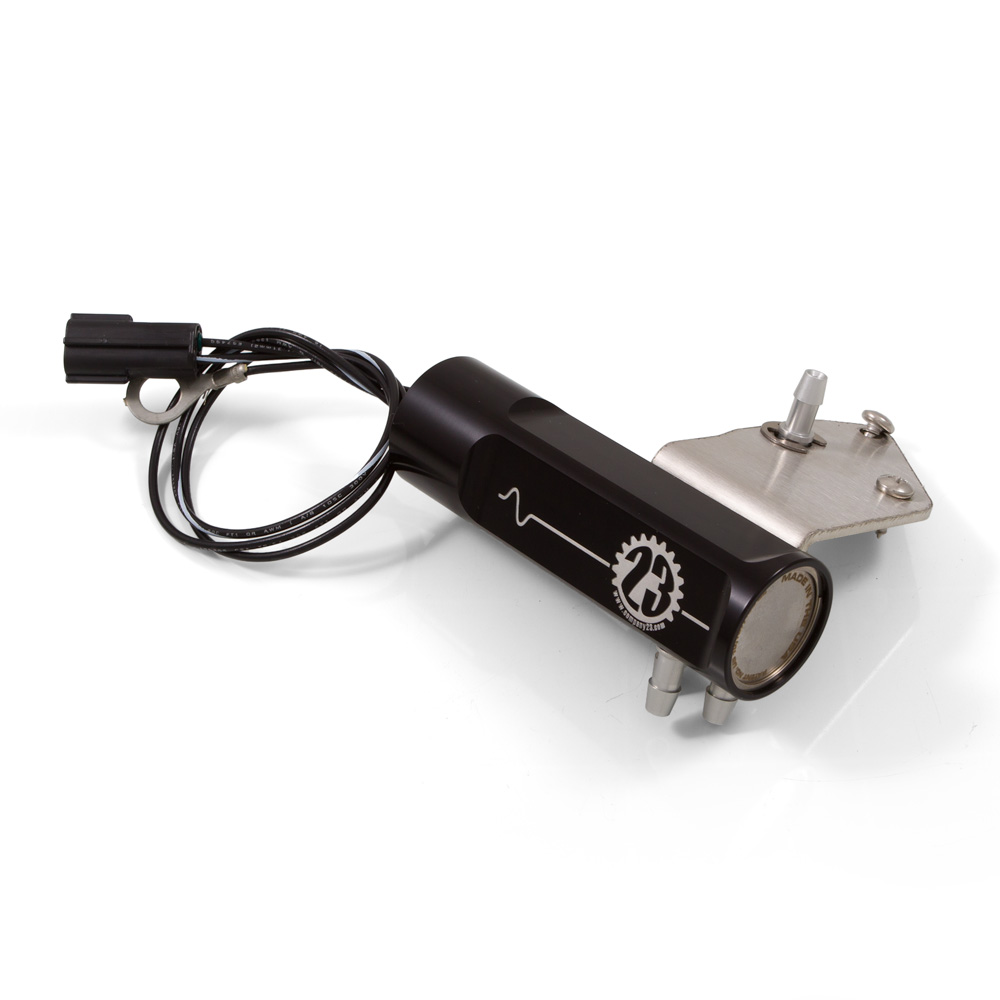

• NEW best-in-class Stainless Steel mounting brackets for an OEM-like fit and finish

• CNC machined and anodized 6061 aluminum housing is completely sealed for a lifetime of use

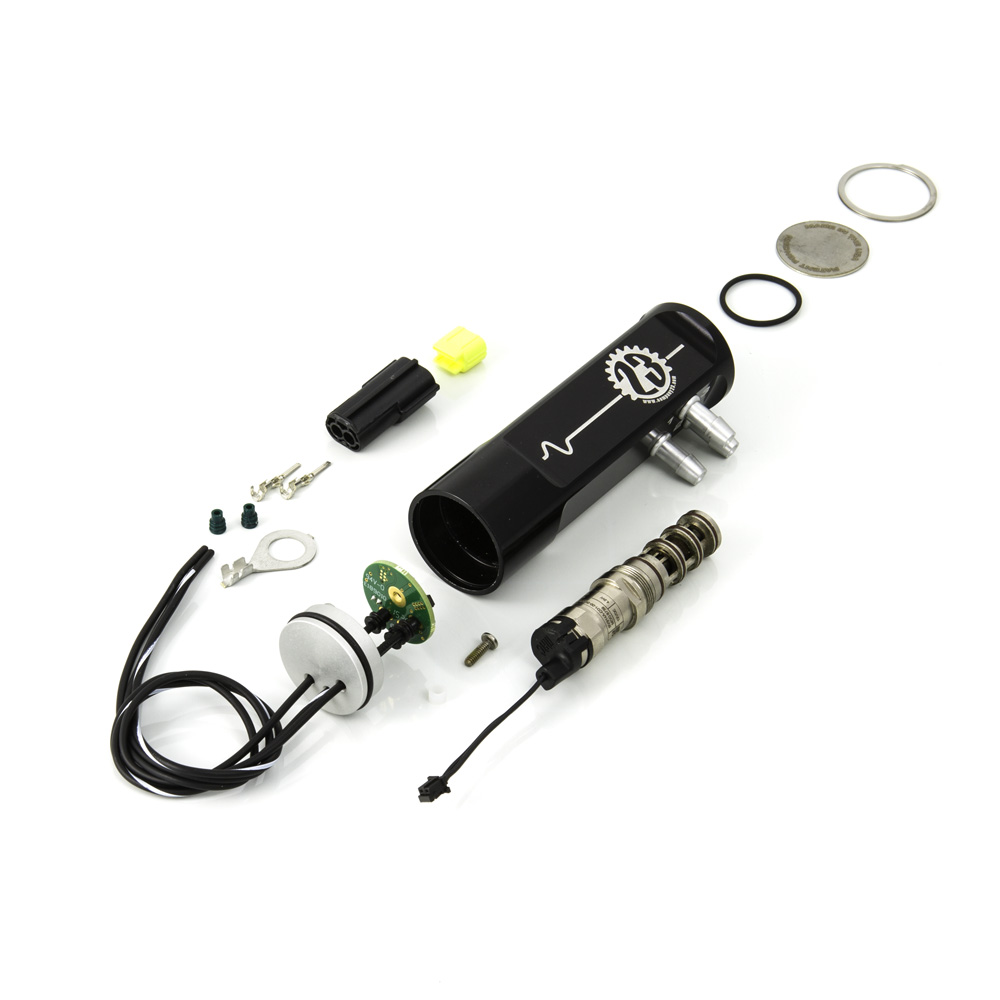

• Boost conroller uses a custom 3-port solenoid designed by Company23 and manufactured by MAC

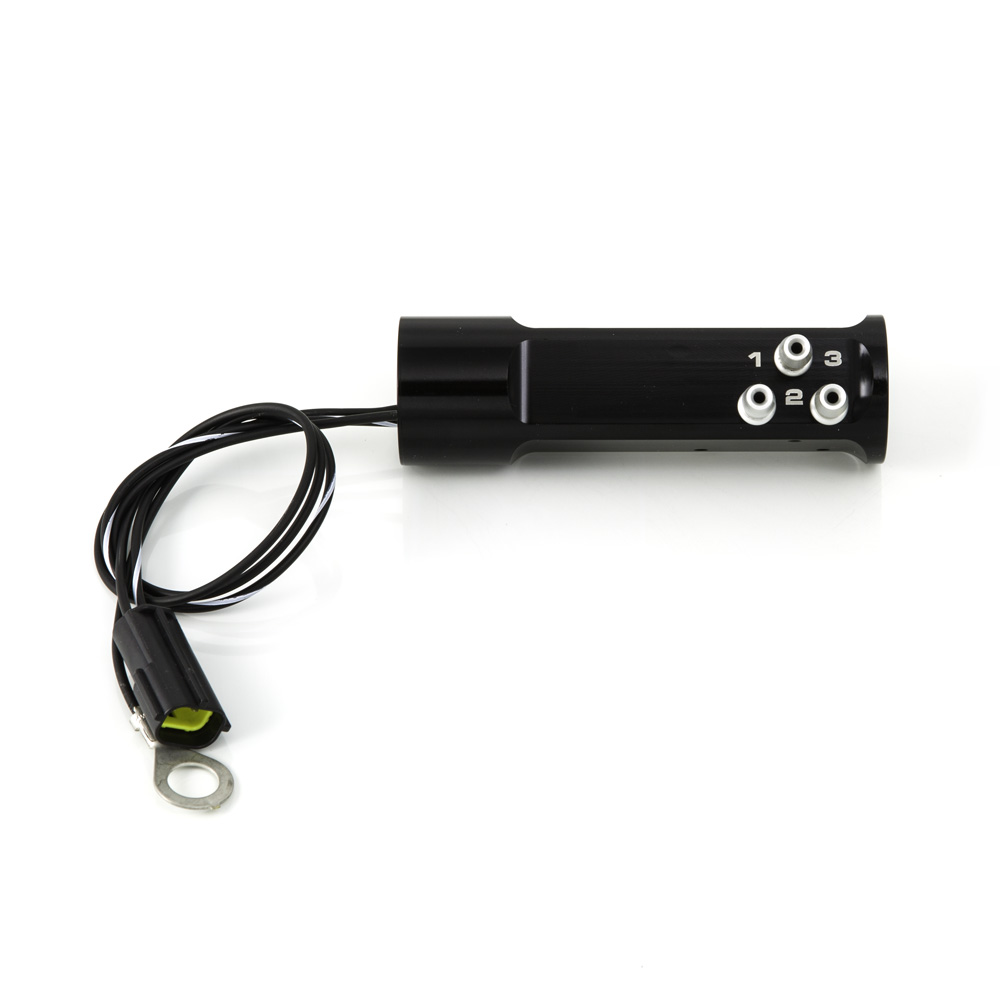

• 6mm(1/4") CNC machined hose fittings
• v3 design includes all of our previous v2 dynamic range and calibration enhancements for ease of tuning

Advantages over other aftermarket 3-port boost control solenoids:

• Eliminates wastegate flutter.
• Prevents oscillation in the boost curve.
• Makes more horsepower and torque when compared to a detuned map focused on eliminating flutter.

Advantages over manual boost controllers:

• Allows RPM/load dependent boost control
• No need to worry about partial throttle/full boost during closed loop.
• Does not require retuning for temperature/season changes or extreme changes in elevation.

Advantages over standalone electronic boost controller or standalone ECUs:

• Retains OEM reliability and driveability.
• Is "plug and tune" easy.
• Significantly less expensive.
• Less complexity.

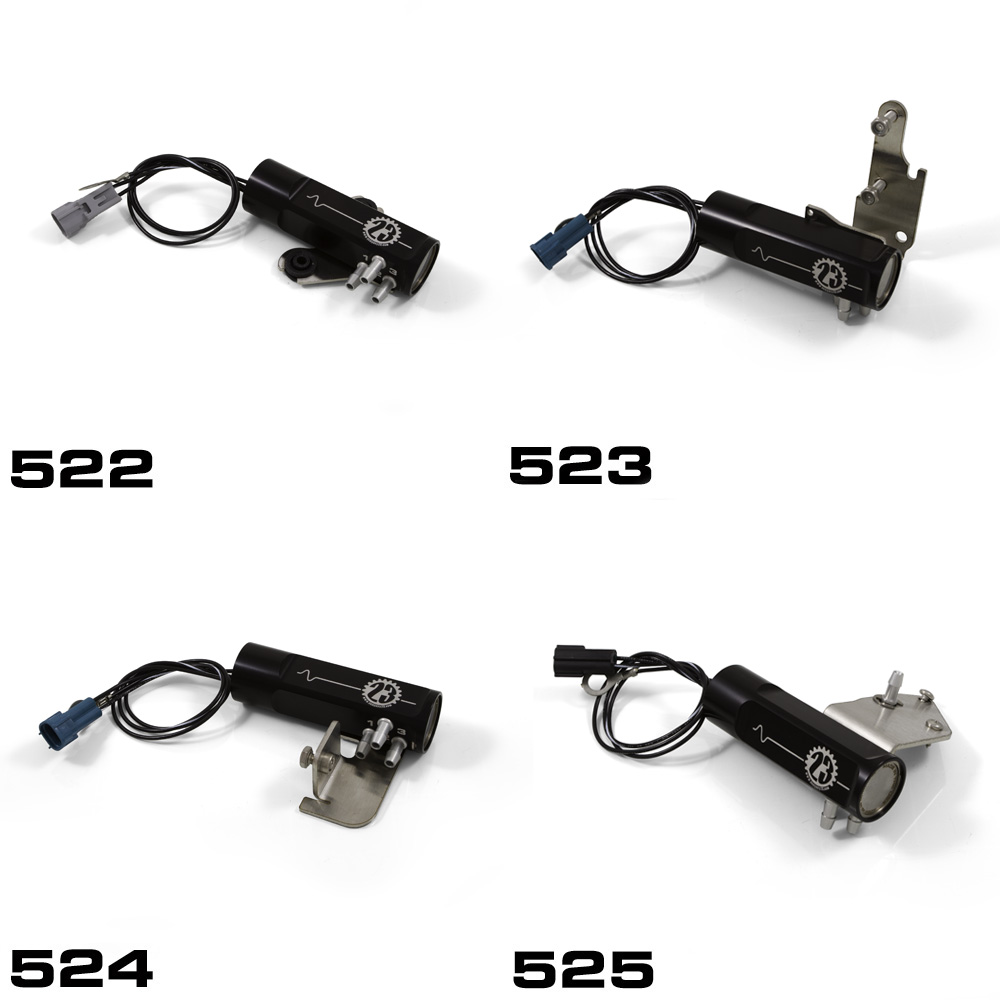

Works with:

   Kit 522:

• 02-07 Subaru Impreza WRX
• 04-07 Subaru Impreza WRX STI
• 04-08 Subaru Forester XT
• 05-06 Saab 9-2X Aero

   Kit 523:

• 08-14 Subaru Impreza WRX
• 09-13 Subaru Forester XT
• 05-09 Subaru Legacy GT
• 05-09 Subaru Outback XT

   Kit 524:

• 08-21 Subaru Impreza WRX STI

   Kit 525:

• 2015-2021 Subaru Impreza WRX/FA20
